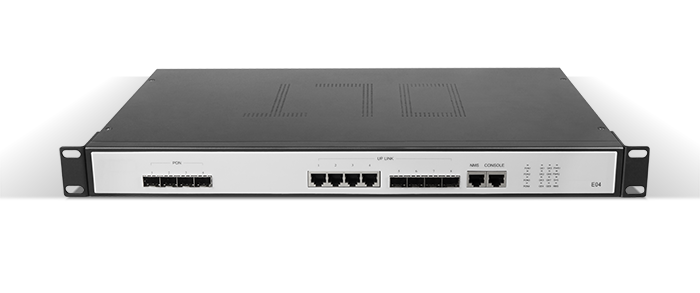

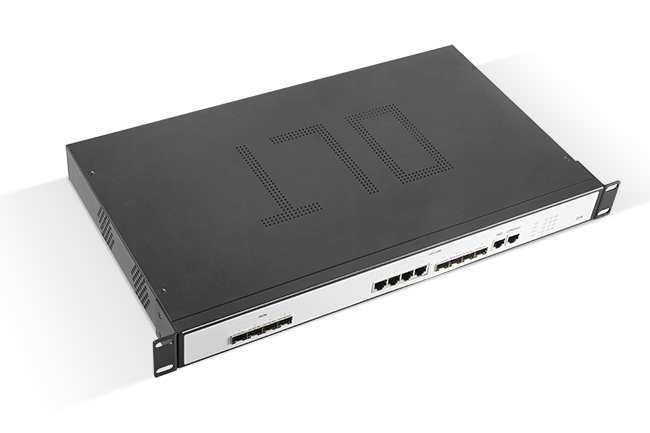

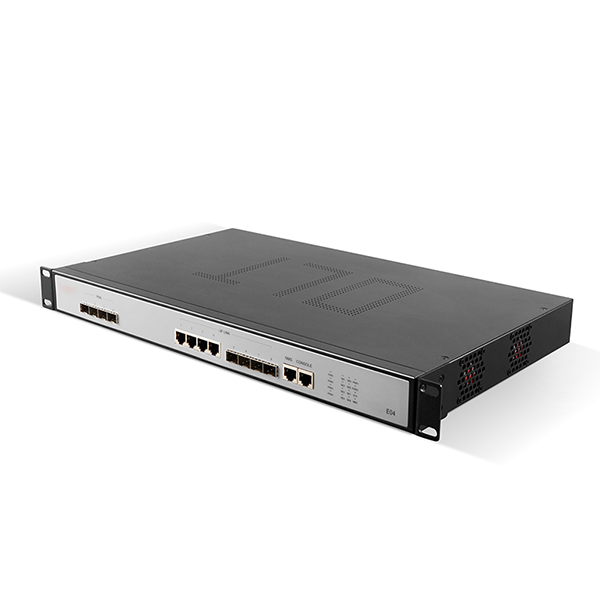

4 PON EPON OLT, 4 PON 4 RJ-45 4 SFP Port, 1U
Advantage:
- EPON: OLT follows the technical standard of IEEE802.3ah and（YD/T 1475-2006）
- Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration.
- Uplink: Support electrical and optical modules, Can be flexibly configured according to different networking.
- Dimension: 1U cassette save space, Low power consumption and save cost.
- Optical Line Protection: Support automatically switch when the line is debug.
- High reliability: Supports dual power supply(Default single power supply).
- Aggregation layer switch. Layer wire-speed forwarding, support for rich layer protocol.
- 16K MAC address table.
- 4 x uplink ports, Port aggregation through the largest available 4G uplink bandwidth.
- Complete network management functions
- Support flexible DBA, Up and down traffic speed.
- Support IP ToS, IEEE802.1Q
- Port-based traffic control, Traffic shaping.
- Support ONU automatic identification, Auto-discovery, And auto-registration.
- Single link to support the automatic loop-back test function.
- VLAN powerful features, Including VLAN Stacking, Trunk, Translation.
- Flexible and controllable multicast support, Support IGMP snooping.
Configuration Parameter:
|
Model |
EL-E04 |
|
|
DDR |
512M |
|
|
FLASH |
16M |
|
|
Size (L*W*H) |
Product size:442mm×260mm×44mm Package size:520mm×372mm×87mm |
|
|
Weight |
<5kg |
|
|
Uplink |
QTY |
8 |
|
Copper |
4*10/100/1000Mauto-negotiable,RJ45 |
|
|
SFP |
4 SFP slots |
|
|
PON |
QTY |
4 |
|
PhysicalInterface |
4 SFP slots |
|
|
Connector Type |
1000BASE-PX20+ |
|
|
Max splitting ratio |
1:64 |
|
|
Management Ports |
1*10/100/1000Mauto-negotiable outband port 1CONSOLE port |
|
|
Power Input |
AC: 100V～240V AC 47/63Hz DC: -36V～-72V DC |
|
|
Support standard |
IEEE 802.3ah EPON IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3z（1000BASE-X） IEEE802.3ab（1000Base-T） IEEE802.1Q(VLAN) IEEEE802.1d(STP) IEEEE802.1W(RSTP) IEEE802.1p(COS) IEEE802.1x(Port Control) IEEE802.3x（flow-control） Each OLT interface supports at most 64 ONU； Transmission distance of each OLT is at most 20Km |
|
|
PON function |
Support auto register and confirm Blacklist and whitelist onu DBA configure |
|
|
Layer 2 function |
VLAN,QinQ,link convergency, broadcast strom control Support at most 4094 VLAN;performance statistic； 16K MAC address;mac address management Port mirror |
|
|
Security |
Limit quantity of maximum user at each port Port violation Packe storm control ACL access control based on data stream Encrytion of PON port transmitting data Support 802.1X authentication |
|
|
Configuration andManagement |
SNMP NMS CLI, SNMP, TELNET,cluster etc. RMON v1, 1,2,3,9 groups SSHv1/v2 Software and bootrom upgrade by TFTP and FTP Local server syslog to record system log Chinese/English command prompt Ping and traceroute Debug |
|
|
Lightning |
Service port has lightning protection |
|
|
Maintenance |
Telnet remote maintenance |
|
|
Temperature |
-20℃～50℃ |
|
|
Humidity |
5%～95% |
|
