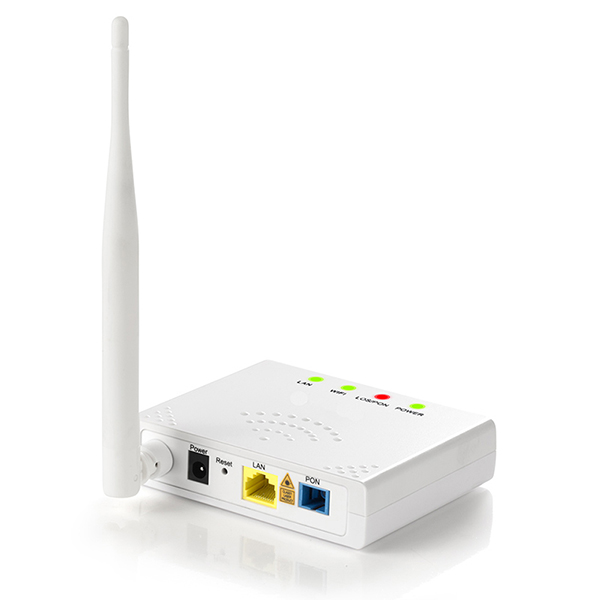

The GEPON WIFI ONU Fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT. It also can integrate with 802.11b/g/n technical standards wireless function,  It has built-in high gain directional antenna, the wireless transmission rate up to 300Mbps, It also can be auto In comply with IEEE802.3-2005 standards.

Product Features

In comply with FSAN G.984.2 standards Class B+

Support data encryption, group broadcasting, port Vlan separation ,etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software

Support port mode of VLAN configuration

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support port flow control

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

EMS network management based on SNMP ,convenient for maintenance

Support software online upgrading

Support port-based rate limitation and bandwidth control;

WIFI Functions

Frequency: 2.4Ghz; Router/Bridge/AP

Integrated 802.11b/g/n, 300Mbps

Support 64/128-bit WEP and WPA/WPA2 security protocols

DSSS/CCK/OFDM Modulation

Physical / Electrical

PORTs

1xGEPON Optical ports

 1GE port(10/100/1000MBASE-PX20+)

1xWiFi Antenna; 1xDC power button; 1xReset

PON Optical parameter

Tx Optical Power: -1~4dBm

Overload: -3dBm

PON: SCPC single-mode fiber,Downstream Data Rate:2.488Gbps,

Upstream Data Rate:1.244Gbps; Optical Fiber: 9/125mr

Wavelengths: Tx:1310nm. Rx:1490nm

28dB Link loss and  20KM distance, Splitting Ratio: 1:128

Power supply

12V/1A;  6W

Product Size

176x137x34MM
