Product Features

In comply with ITU.TG984x standards

Support 32 TCONT, 256 GEMPORT

Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ

Support bidirectional FEC, supports the RS (255, 239) FEC decoding

Support AES128 encryption and decryption functions with G.984 standard

Support QoS, Including Traffic flow classification, Priority marking, Queue and Dispatch, Traffic shaping and Traffic control, etc.

Support PLOAM, embedded OMCI management with G.984 standard

Support SBA and DBA bandwidth allocation

Support CTC2.1, TR156 requirements of flexible tag processing

Support for flexible flow classification, maximum 520 flow classification rules

Support link error monitoring and loop monitoring

Support a variety of multicast forwarding mode, support multicast replication; Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode

UNI interface supports STP/RSTP protocol

Support max remote distance 20km between OLT/ONU

Support  Dying-Gas detection and reporting, rogue ONU detection

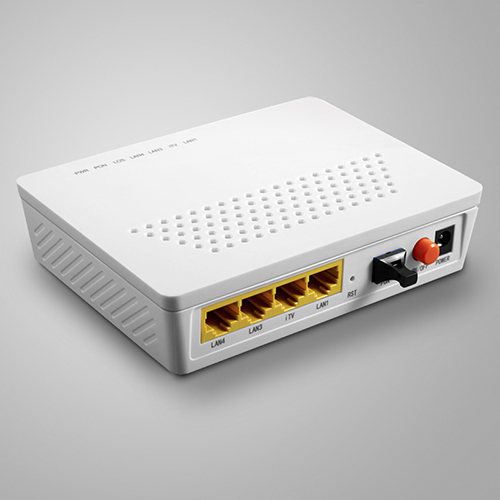

Physical / Electrical

Enclosure

Stabilized Plastic

PORTs

1xPON port SC/PC

4xGE port(10/100/1000MBASE-T)

1xReset button; 1xDC power button

PON Optical parameter

Receiver Sensitive: < -26dBm

Tx Optical Power: -1~4dBm

Overload: -3dBm

PON: SC/PC Rate: 2.5Gbps / 1.25Gbps, Optical Fiber: 9/125mr

Wavelengths: Tx:1310nm. Rx:1490nm

Split Ratio 1:128

Power supply

12V/500mA;  3W
