Product Features

In comply with ITU.TG984x standards

Support CLI, OMCI, DBA function

Support standard 802.1Q VLAN function (Upto 4094 VLANs), support VLAN conversion

Support Frame filtering and Suppression

Support Ethernet service layer 2 switching and Wire-speed forwarding of uplink and downlink services

Support QoS, Including Traffic flow classification, Priority marking, Queue and Dispatch, Traffic shaping and Traffic control, etc.

Support IGMP Snooping

MAC address Learning

Support Ethernet port Rate Limit, Loop Detection, Isolation

Support Power failure alarm, Remote Reset, Remote factory default

Support max remote distance 20km between OLT/ONU

Support Status checking and Failure report

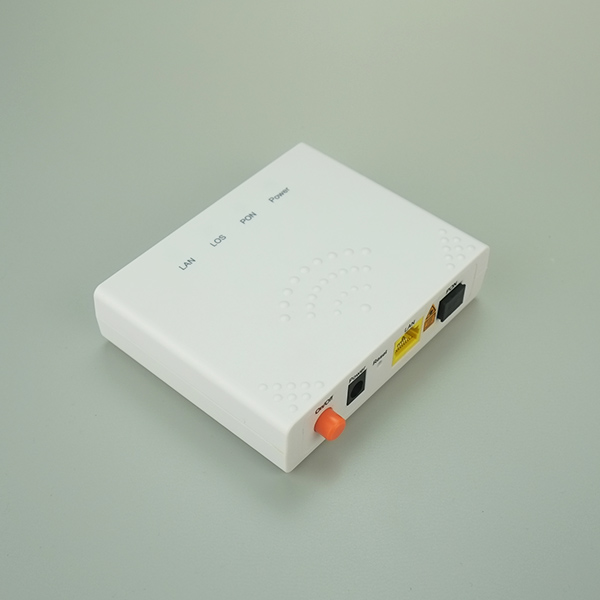

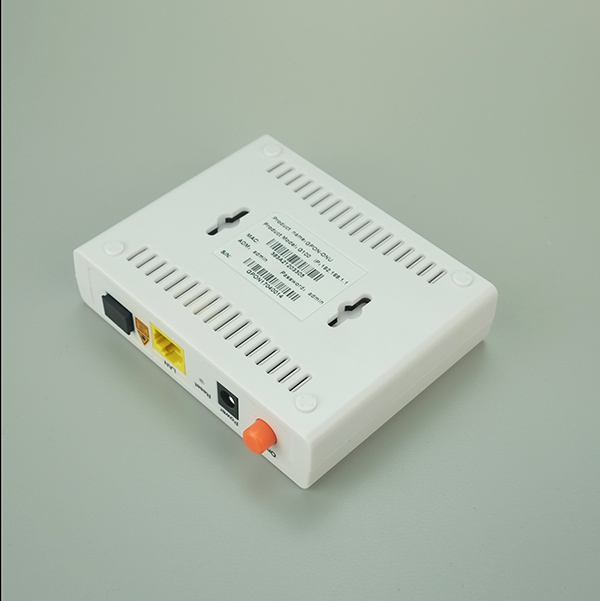

Physical / Electrical

Enclosure

Stabilized Plastic

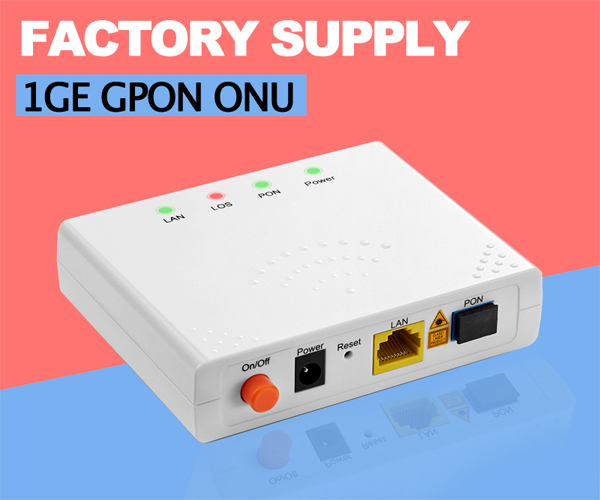

PORTs

1xPon port SC/PC

 1xGE port(10/100/1000BASE-T)

1xReset button; 1xDC power button

PON Optical parameter

Receiver Sensitive: < -26dBm

Tx Optical Power: -1~4dBm

Overload: -3dBm

PON: SC/PC Rate: 2.5Gbps / 1.25Gbps, Optical Fiber: 9/125mr

Wavelengths: Tx:1310nm. Rx:1490nm

Split Ratio 1:128

Power supply

12V/500mA;  2W

Protection:

ITU-T K21 standard
