Product Features

In comply with ITU.T G.984.2 standards Class B+

Support data encryption, group broadcasting, port Vlan separation ,etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software

Support port mode of VLAN configuration

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support port flow control

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

EMS network management based on SNMP ,convenient for maintenance

Support software online upgrading

Support port-based rate limitation and bandwidth control;

WIFI Functions

Frequency: 2.4Ghz; Router/Bridge/AP

Integrated 802.11b/g/n, 300Mbps

Support 64/128-bit WEP and WPA/WPA2 security protocols

WLAN Function: WPS / WMM / Multiple SSIDs

Physical / Electrical

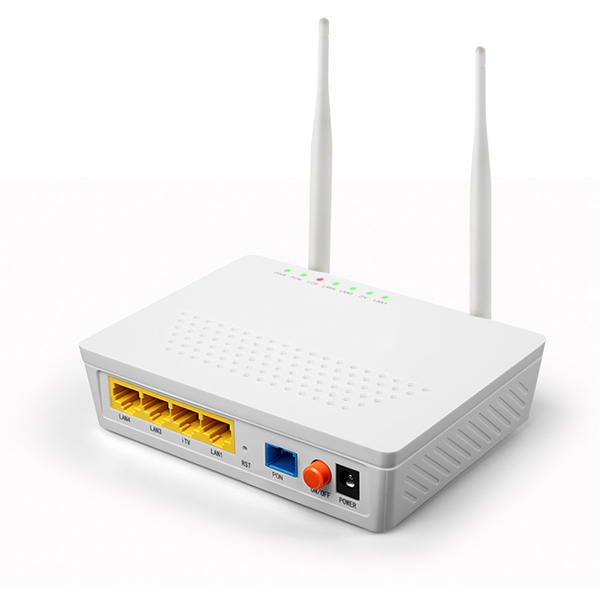

PORTs

1xGPON Optical ports

 1xGE port(10/100/1000M BASE-PX20+) & 3FE (10/100/M BASE-PX20+)

2xWiFi Antenna; 1xReset button; 1xDC power button

PON Optical parameter

Receiver Sensitive: -26dBm

Tx Optical Power: -1~4dBm

Overload: -3dBm

PON: SC single-mode fiber, symmetric 1.25Gbps, Optical Fiber: 9/125mr

Wavelengths: Tx:1310nm. Rx:1490nm

Splitting Ratio: 1:128

Power supply

12V/1A;  6W

Product Size

176x137x34MM
