PON Features

In comply with ITU.TG984x standards

Support 32 TCONT, 256 GEMPORT

Support Tag/Untag Ethernet frame of 802.1 and Q 802.3 standard, support QinQ

Support bidirectional FEC, supports the RS (255, 239) FEC decoding

Support AES128 encryption and decryption functions with G.984 standard

Support PLOAM, embedded OMCI management with G.984 standard

Support QoS, Including Traffic flow classification, Priority marking, Queue and Dispatch, Traffic shaping and Traffic control, etc.

Support SBA and DBA bandwidth allocation

Support CTC2.1, TR156 requirements of flexible tag processing

Support for flexible flow classification, maximum 520 flow classification rules

Support link error monitoring and loop monitoring

Support max remote distance 20km between OLT/ONU

UNI interface supports STP/RSTP protocol

Support a variety of multicast forwarding mode, support multicast replication; Auto-negotiation and manual settings of Ethernet supporting rate, duplex mode

Support  Dying-Gas detection and reporting, rogue ONU detection

POTs Functions

Call Protocol: SIP, seamless compatible with all popular call agent

Integrate heartbeat function and support active/standby call agent

Voice coding:ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent

Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length

Support high/low speed fax, bypass fax, and T38 fax.

Support high speed MODEM(56Kbps) dial access

Support RFC2833 and redundant RFC2833, Difference rings, MD5 authentication, Call forward, Call Waiting, Hot-Line call, alarm clock, and all kinds of value-added voice service.

IP address assignment: dynamic PPPoE/DHCP Client and static IP

WIFI Functions

Integrated 802.11b/g/n, 150Mbps

Support 64/128-bit WEP and WPA/WPA2 security protocols

Support Router and Bridge function

Physical / Electrical

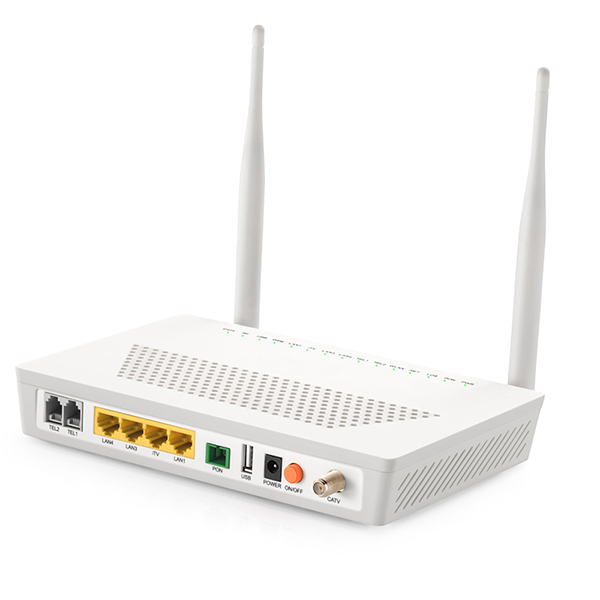

PORTs

1xGPON Optical ports

 4xGE port(10/100/1000MBASE-PX20+)

1xUSB Port;1xCATV; 2xFXS ports; 1xWiFi Antenna; 1xReset button; 1xDC power button

PON Optical parameter

Receiver Sensitive: -26dBm

Tx Optical Power: -1~4dBm

Overload: -3dBm

PON: SC/PC Rate: 2.5Gbps / 1.25Gbps, Optical Fiber: 9/125mr

Wavelengths: Tx:1310nm. Rx:1490nm

Splitting Ratio: 1:128

Power supply

12V/1A;  7W
