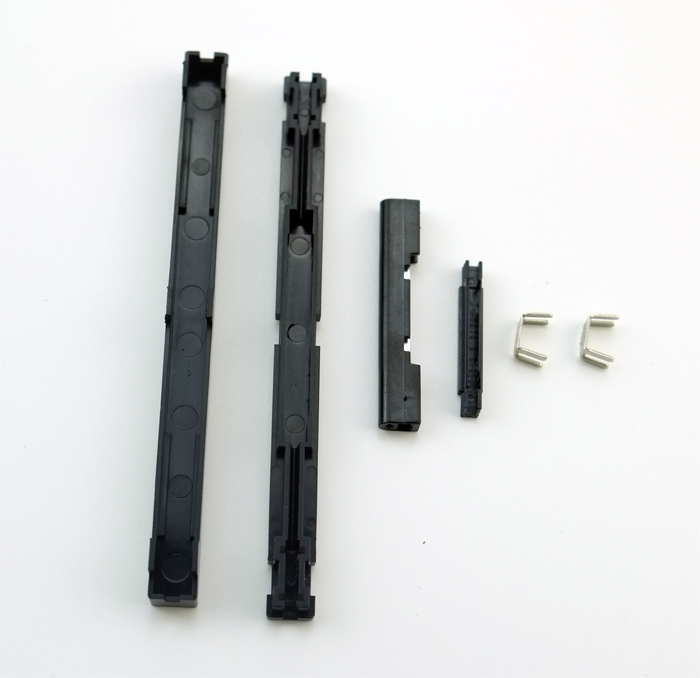

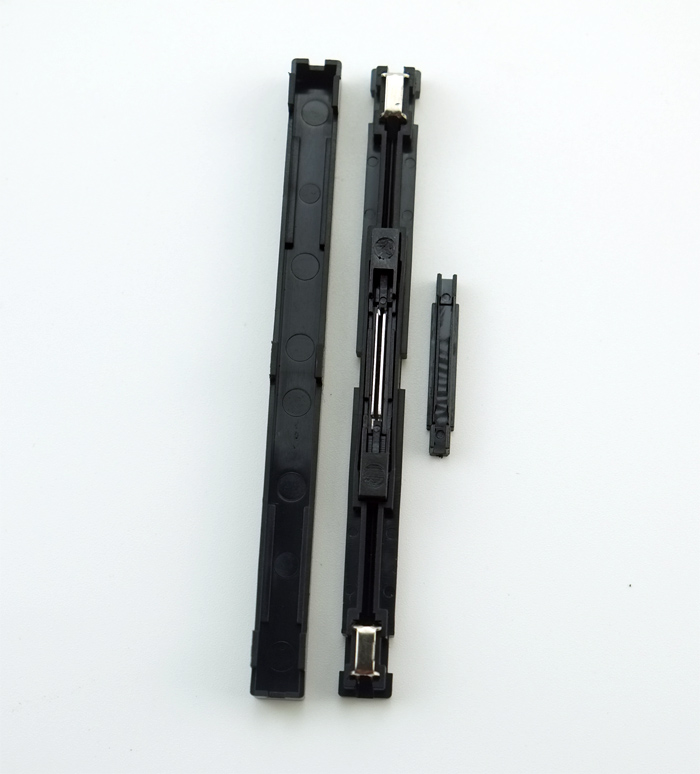

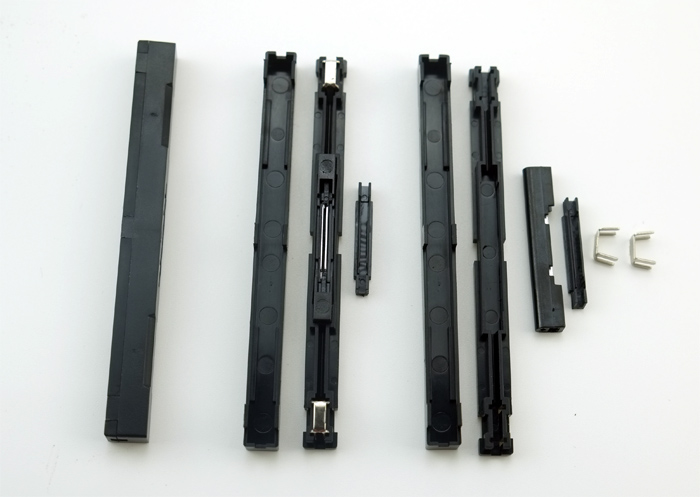

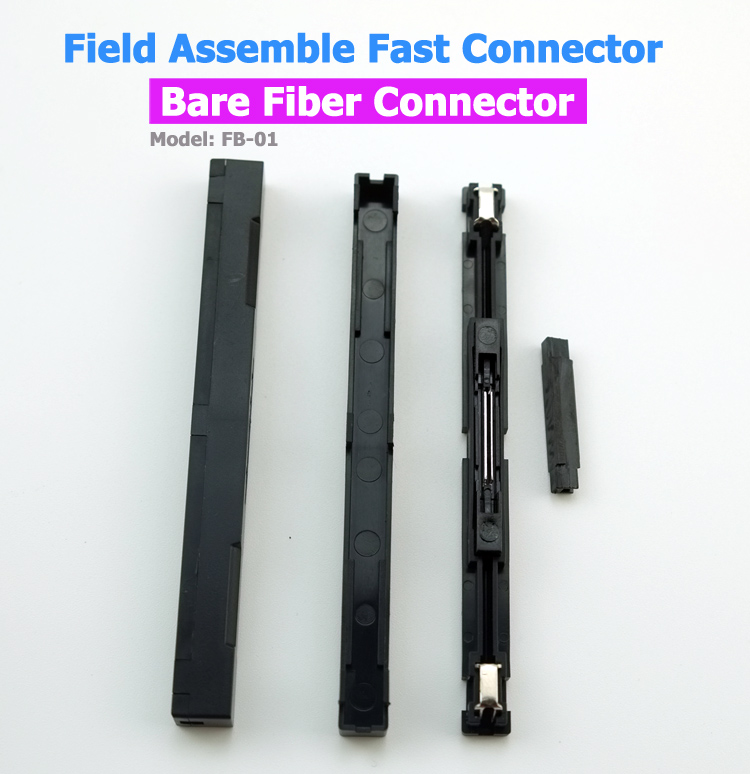

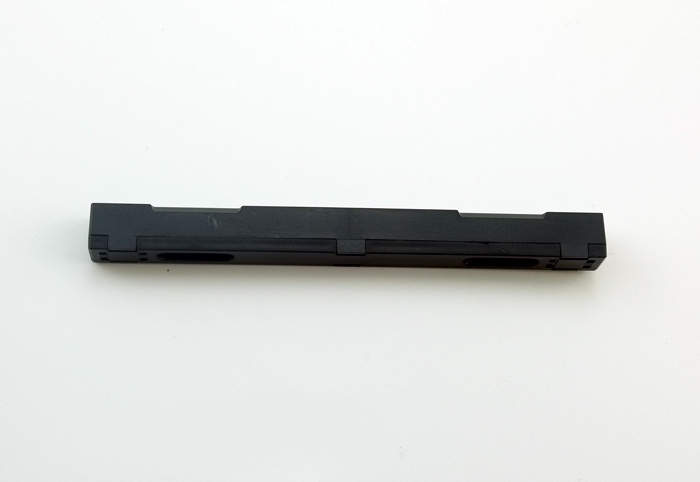

Bare Fiber Connector Black (S/N: F-B01)
Model NO.: F-B01
Suitable cable: φ2.0mm or φ3.0mm or 2.0x3.0mm fiber
|
Fiber mode |
Single or multy 125um & 900um |
||
|
Online torsion |
35N |
||
|
Fiber mode |
Single mode |
||
|
Insert loss |
≤0.1dB (1310nm & 1550nm) |
||
|
Return loss |
≤ -40dB |
||
|
Fastening strength of naked fiber |
≥ 5N |
||
|
Tight clamping force cladding |
≥ 8N
|
||
|
Tensile strength |
≥ 30N |
||
|
Work temperature |
-45°C~+80°C |
