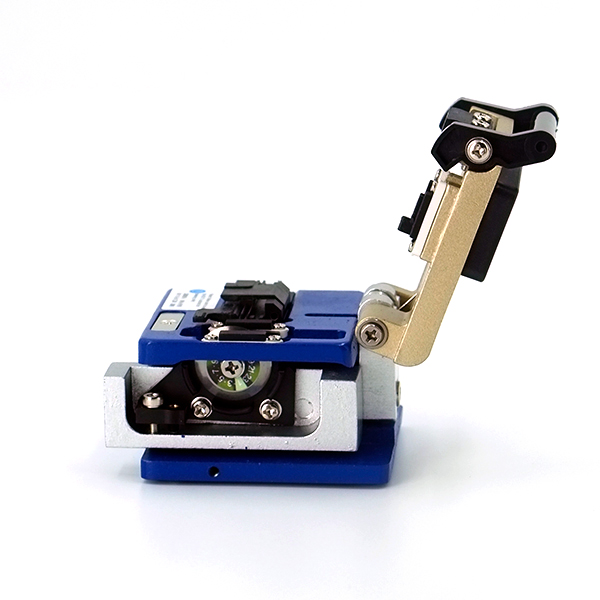

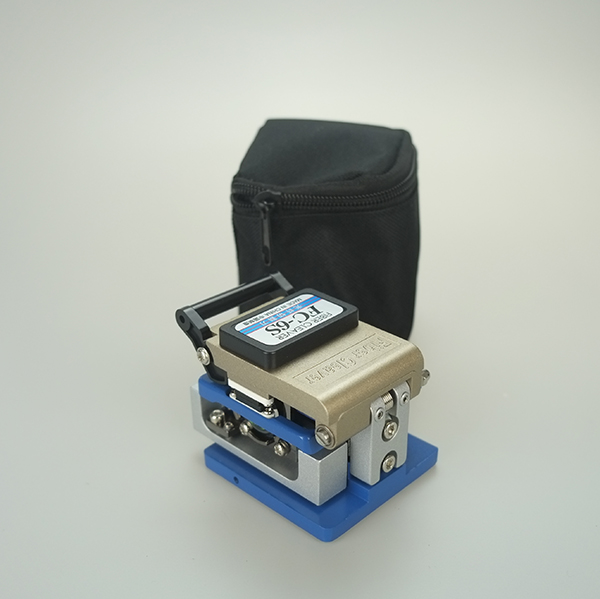

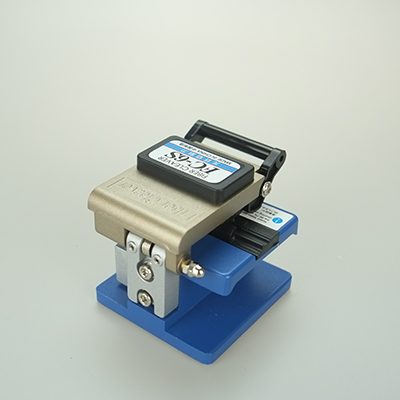

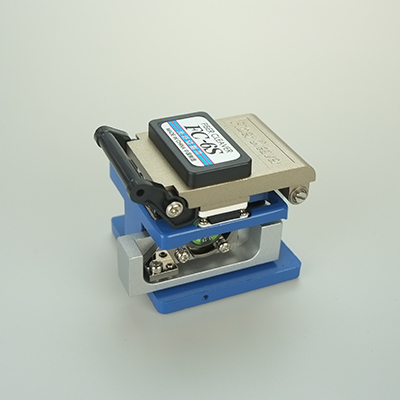

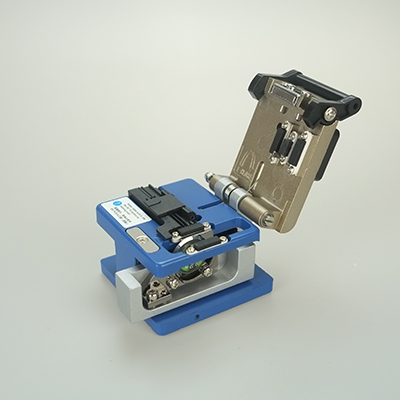

Optic Fiber FC-6S Cleaver (S/N: CS710)
Model No.: CS710
Used for Single Fiber Cleaving with Fiber Scrap Collection
Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
Has Superior Blade Height and Rotational Adjustment
Precision Blade features 12 blade positions with 3,000 cleavers per position
|
Specification |
|||
|
Bare fiber diameter |
0.25mm~0.9mm |
||
|
Outercoat diameter |
125µm |
||
|
Fiber type |
Single tube fiber and Ribbon fiber(exchangeable) |
||
|
Cleaved length |
9~16mm(φ0.25) 10~16(φ0.9) |
||
|
Cleaved angle |
≤0.5° |
||
|
blade life |
36,000cleaves |
||
|
Mode |
Semiautomatic |
||
|
Dimension (mm) |
63x76x63 |
||
|
Weight |
430g |
||
