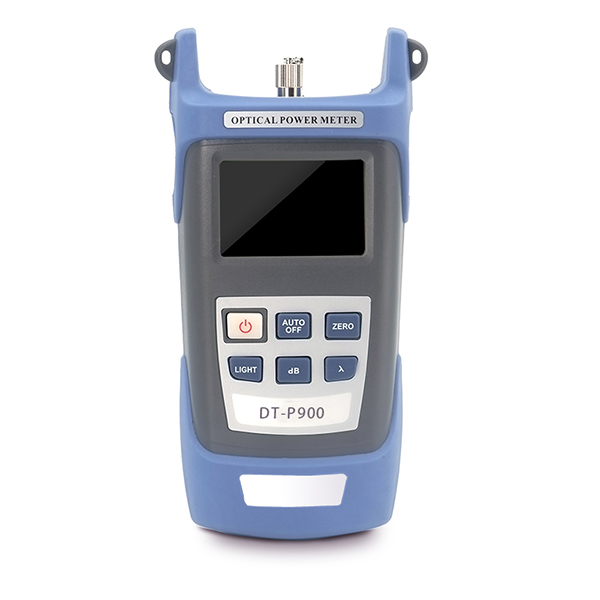

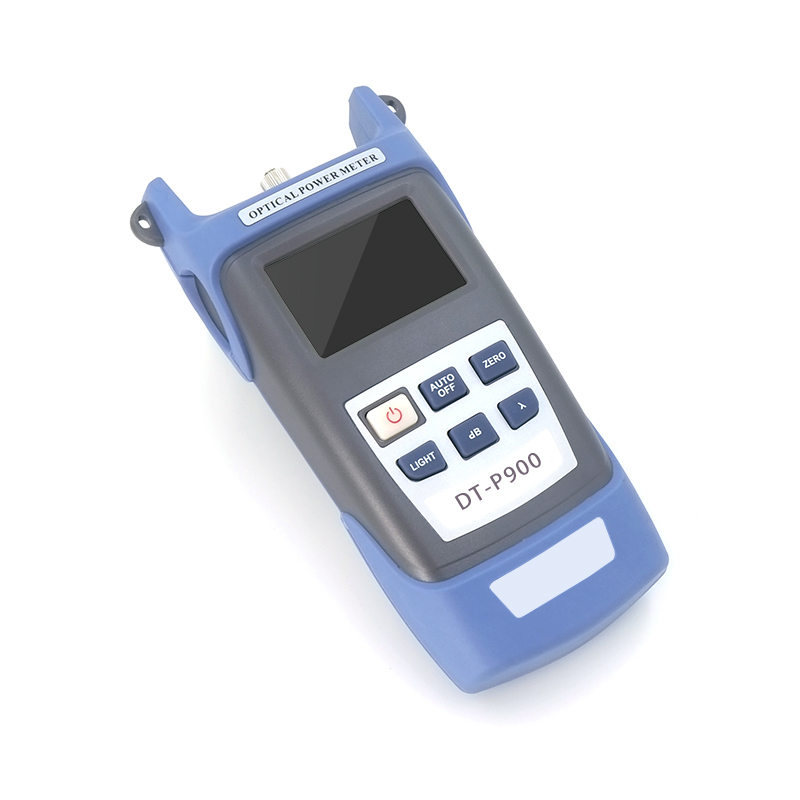

Optic Power Meter (S/N: P900)
Model No.: P900
The new-type optical power meter is the latest self-developed multi-functional power meter designed for the installation, construction and maintenance of optical fiber network
|
Feature: |
|
|
Self-calibrating function |
|
|
Support backlight |
|
|
Support Auto shut down function |
|
|
Universal connector |
|
Specification |
|||
|
Wavelength Range |
800~1700nm |
||
|
Detector |
InGaAs |
||
|
Connector |
SC/FC/St |
||
|
Measurement Range |
-70～+10dBm |
||
|
Uncertainty |
±5% |
||
|
Calibrated Wavelength（nm） |
850, 980, 1300, 1310, 1490, 1550 |
||
|
Display Resolution |
0.1% / 0.01dBm |
||
|
Operating Temperature（℃） |
-25～+70 |
||
|
Auto-off time |
10min |
||
|
Dimension（mm） |
185*80*48mm |
||
|
Power Supply |

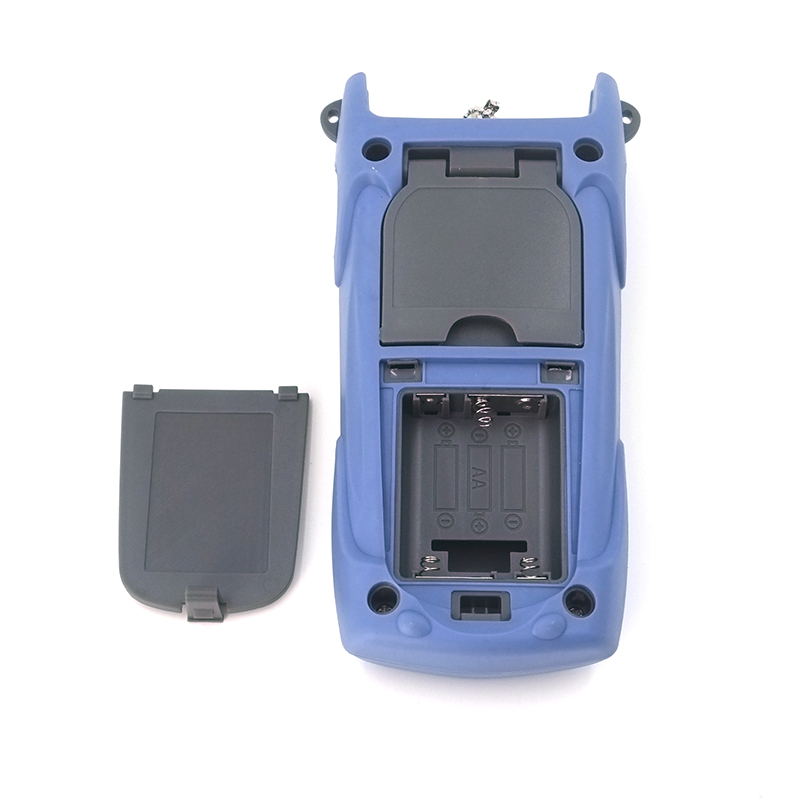

AAA 1.5V Battery x 3pcs |
||
