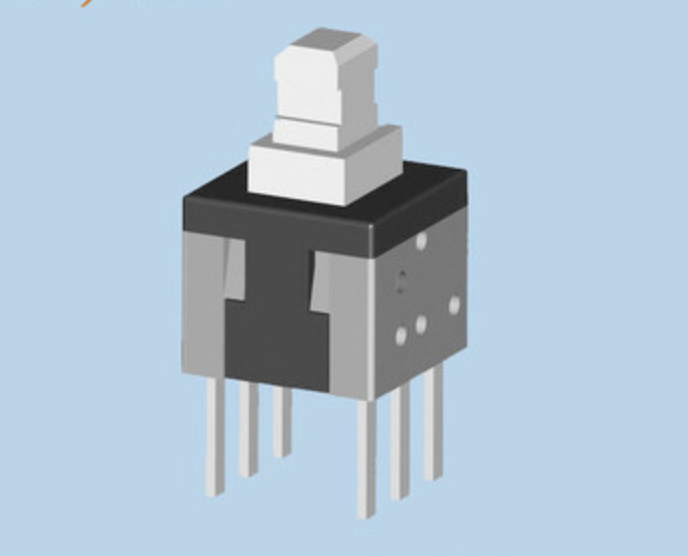

Non-Lock Switch / Push

Basic specfication parameter
Electrical Characteristics:
1. Rating: DC30V 0.1mA
2. Contact Resistance: ≤ 100m Ω
3. Insulation Resistance: ≥ 100m Ω DC500V
4. Withstand Voltage: AC250V 1 Minute
5. Electrical Life: 100, 000cycles above(Load)
Mechanical/reliability Characteristics:
1. Mechanical Life: 100, 000cycles(No Load)
2. Operating temperature range: -25º C+80º C
3. Ambient humidity used: ≤ 85% RH
4. Soler ability: 245º C± 5º C 3S± 0.5S
5. Withstand soldering temperature: 260º C± 5º C 3S± 1S
