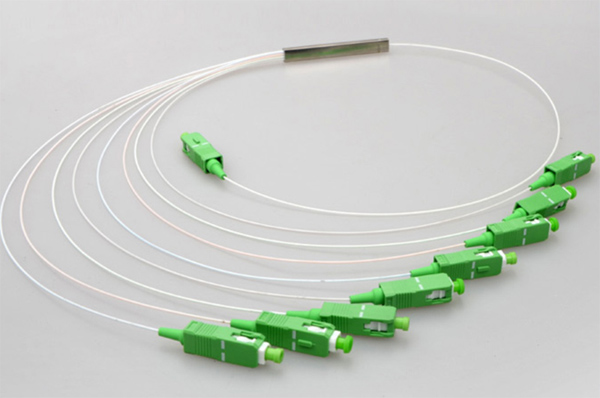

1x8 PLC Splitter Steel Type APC
Model No.: O-SA08
The Planar Light Wave Circuit Splitter(PLC Splitter) is an optical power device of light wave technology, Based on quartz plate planar which is used in local side or termination of Passive Optical Network(Like EPON, GPON Device etc.)
For splitting of optical signal. It can be widely used in optical transmission, long distance transmission, subscriber loop, FTTH, telecommunication, CATV, testing devices, fiber optic sensor, data communication and WAN.
----------
We supply 1x2, 1x4, 1x8, 1x16, 1x32 PLC Splitter, Different features below.
The connector also can be customized. like change to SC-APC/UPC, FC or LC
|
Operating Wavelength (nm) |
1260~1650 |
|||||
|
Connector Type |
SC-APC Connector |
|||||
|
Fiber Type |
G.657 A1 Pigtail (2.0mm) ; Length: 1.0M |
|||||
|
Port Configuration |
1/2 |
1/4 |
1/8 |
1/16 |
1/32 |
|
|
Insertion Loss (dB) |
Typical |
3.8 |
7.1 |
10.2 |
13.5 |
16.5 |
|
|
Max |
4.0 |
7.3 |
10.5 |
13.7 |
16.9 |
|
Loss Uniformity (dB) |
Max |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
|
Return Loss (dB) |
Min |
55 / 50 |
||||
|
Polarization Dependent Loss (dB) |
Max |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
|
Wavelength Dependent Loss( dB) |
Max |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
|
Temperature Dependent Loss (-40~85 ) (dB) |
Max |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
|
Directivity (dB) |
Min |
55 |
55 |
55 |
55 |
55 |
|
Operating Temperature (°C) |
|
-40 ~ +85 |
||||
|
Storage Temperature (°C) |
|
-40 ~ +85 |
||||
|
Box Material |
|
ABS |
ABS |
ABS |
ABS |
ABS |
|
Dimension (L*W*H) mm |
|
100*80*10 |
100*80*10 |
100*80*10 |
120*80*18 |
120*80*18 |
